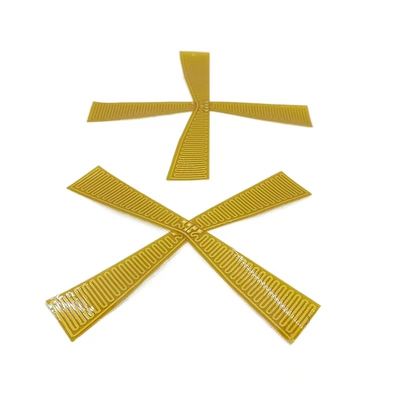

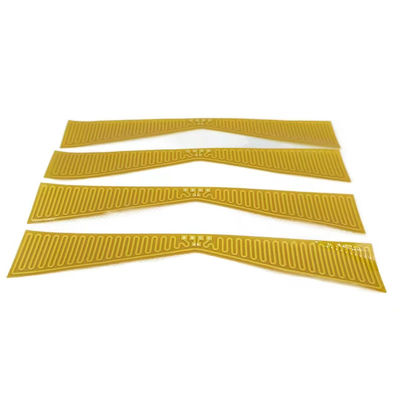

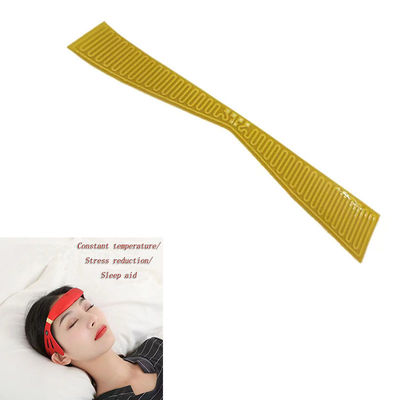

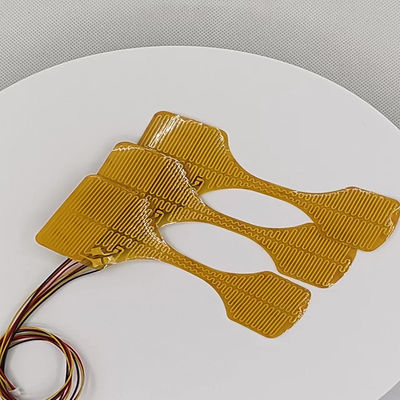

The polyimide film PI electrothermal film is a polyimide film as an outer insulator; the metal foil and the metal wire are internal conductive heating bodies, which are formed by heat sealing at high temperature and high pressure. Polyimide film electrothermal film has excellent dielectric strength; excellent electric strength; excellent heat transfer efficiency; excellent resistance stability. This makes it widely applicable to the field of heating and is capable of achieving relatively high temperature control accuracy.
①Heater thin and light so you can just position on the need for heating without heating part being avoided.
②Etched foil heating technology provides fast and efficient heat transfer and uniform heating surface, the temperature difference is minimal.

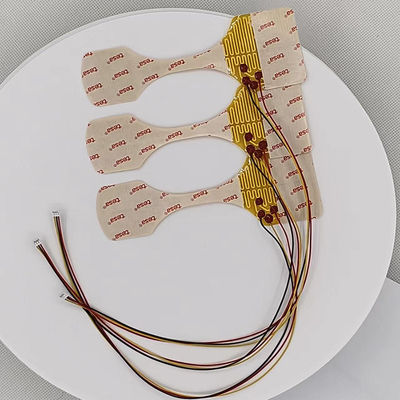

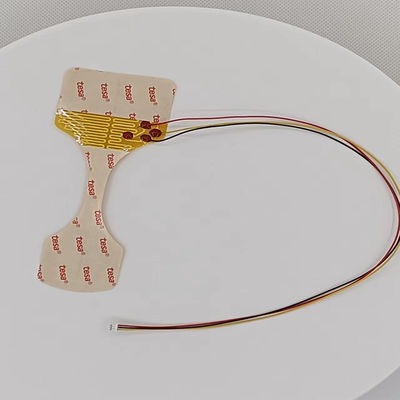

③Customization options (for example: SMT components, flex cable and connectors) can provide the perfect complete solution that can significantly reduce assembly time and increase productivity.
④Custom configured to provide balanced heating output performance to improve process yield and productivity, in accordance with requirements of additional temperature control device and temperature sensing devices.
⑤There FEP adhesive can be 200 ° C (392 ° F)
⑥Suitable for vacuum environments (NASA-RP-1061)
⑦ Resistant to most chemicals: acids and alkaline solvents erosion
⑧ If you are using polyimide insulated wires (custom option) can resist 106 rads of radiation, PSA adhesive stickers can be installed or epoxy adhesive, silicone adhesive installation.
⑨Providing a variety of complex shapes design, and different power designs. Membrane in the same piece electrically heated heating circuit can be designed and holding circuit
⑩Providing a liquid immersion design (non-standard)
|
|
Custom parameters
|
Illustrate
|
|
1
|
Size
(l*w*h):
|
Length/width/height or circular diameter, or direct drawings or samples.
|
|
2
|
Thickness
|
0.1mm~1mm.(There are requirements for thickness or hardness can + reinforcement plate)
|
|
3
|
Apply
|
The products of the application, on what equipment, what materials are heated.
|
|
4
|
Cable
|
Whether a lead is required, the length/diameter/end of the lead is required.
|
|
5
|
Use the ambient temperature
|
What is the ambient temperature of the product application.
|
|
6
|
Product usage temperature
|
How much °C the product needs to be heated.
|
|
7
|
Whether a temperature control device is required
|
Thermostat/ thermostat/ temperature sensor, etc., if necessary, provide relevant parameters.
|
|
8
|
Voltage:
|
1.5V~500V
|
|
9
|
Product resistance power parameters
|
Use voltage, resistance, power.
|
|
10
|
Inrush current
|
The maximum allowable load of inrush current is greater.
|
|
11
|
Whether the back strap is required
|
Please describe the material to which the product is pasted.
|
|
12
|
Sample requirement quantity
|
Proofing the quantity of finished products.
|
