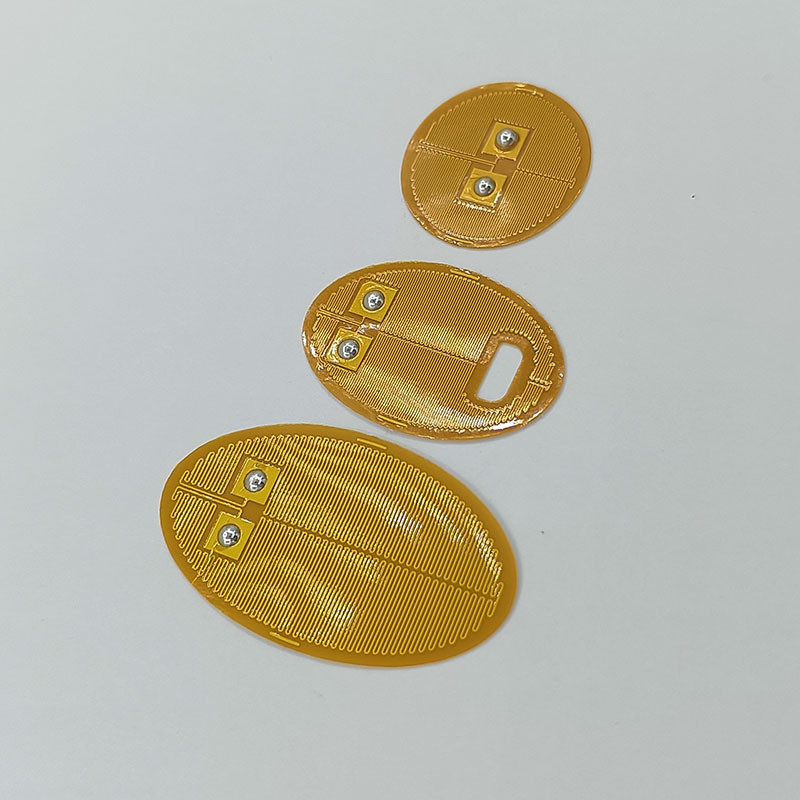

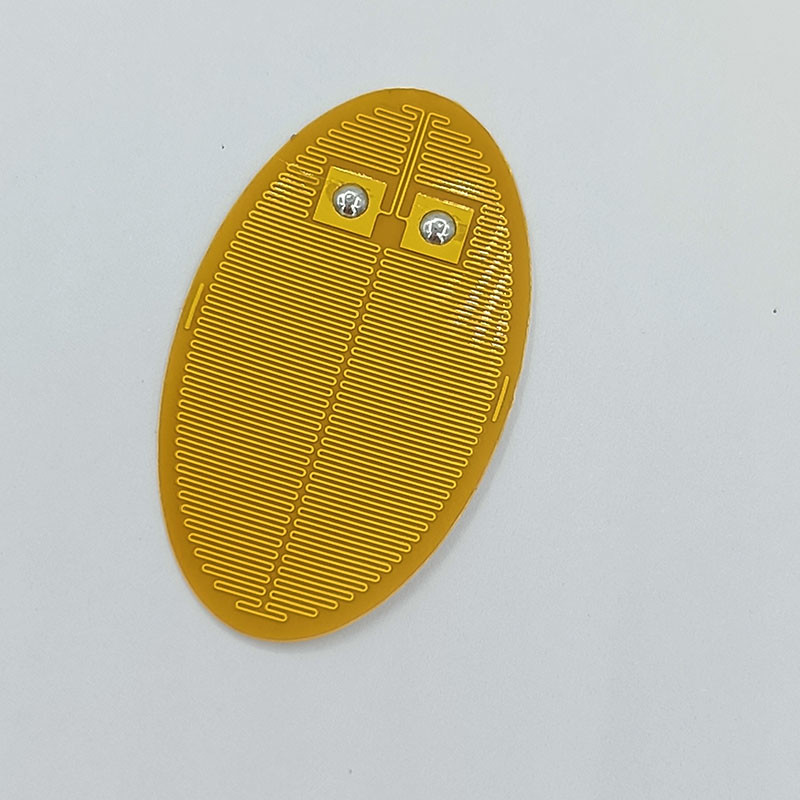

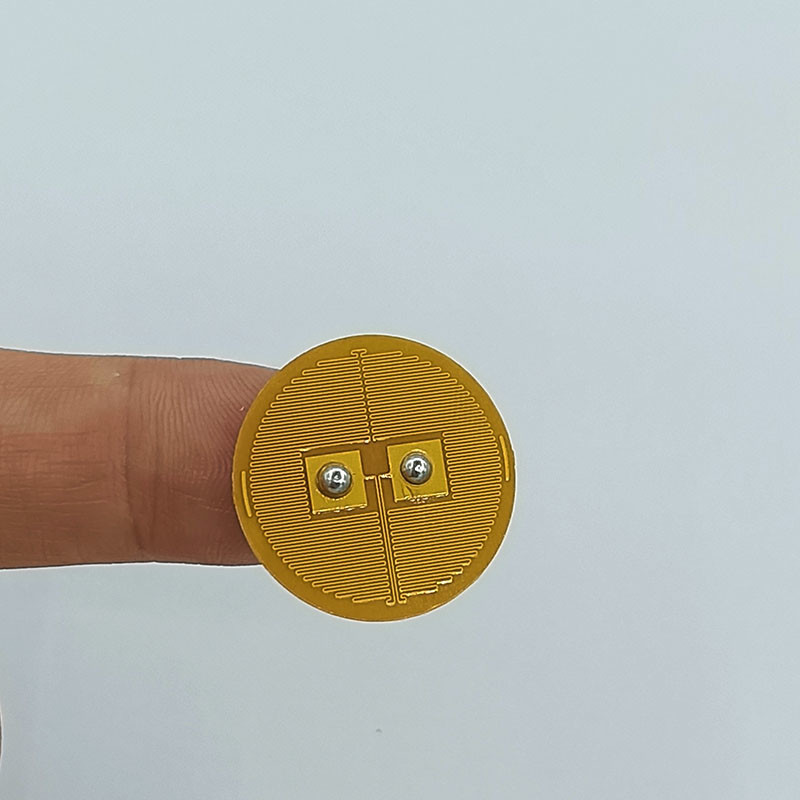

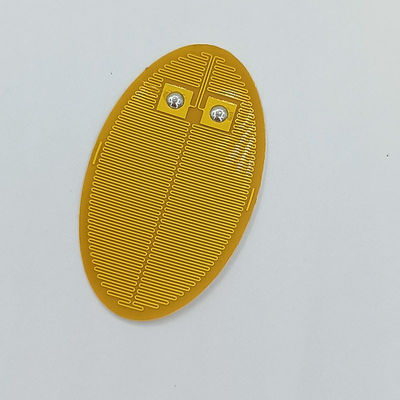

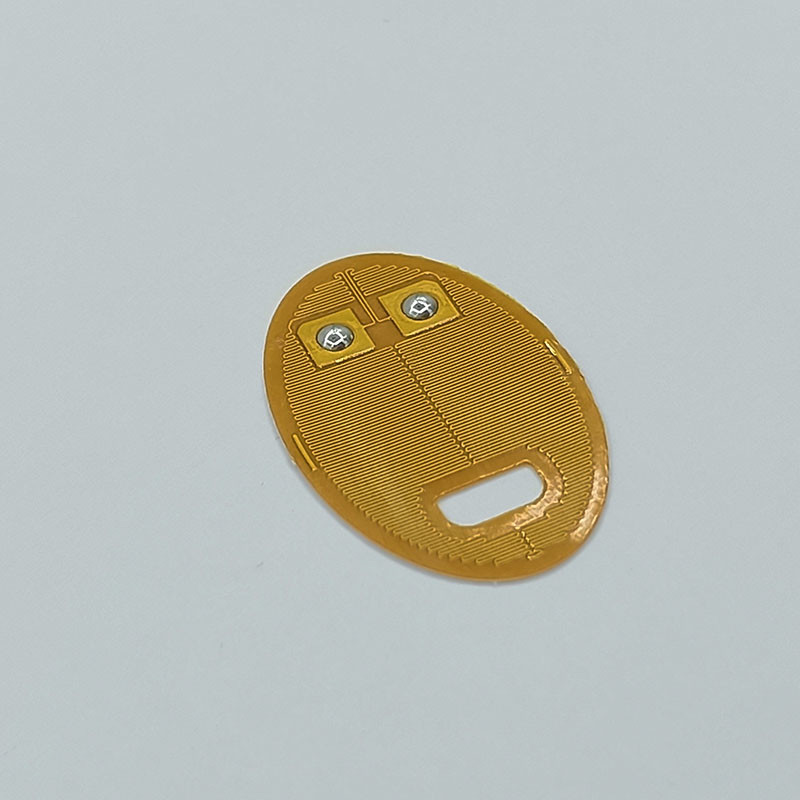

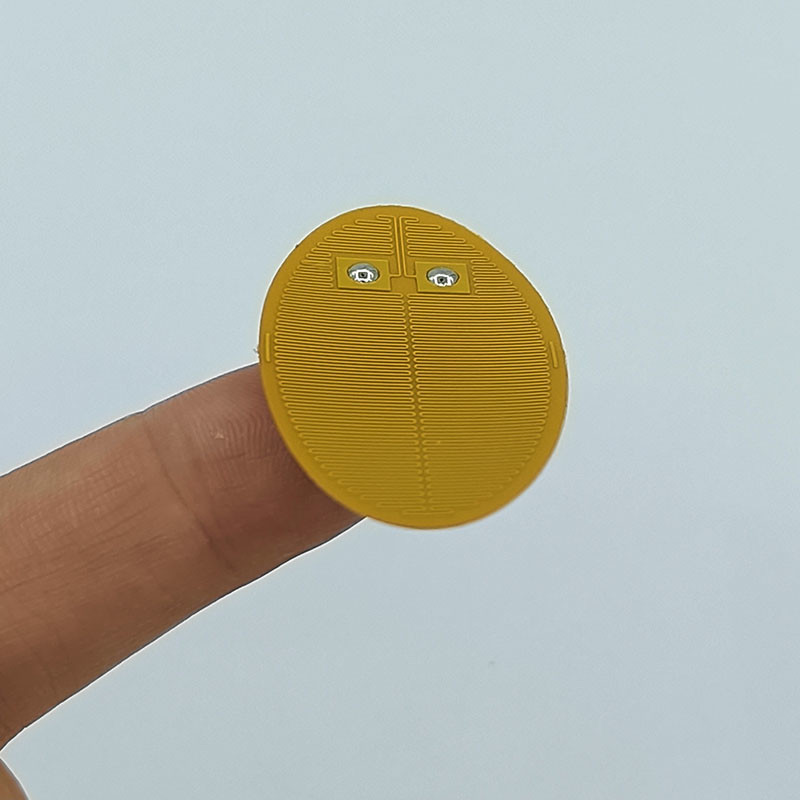

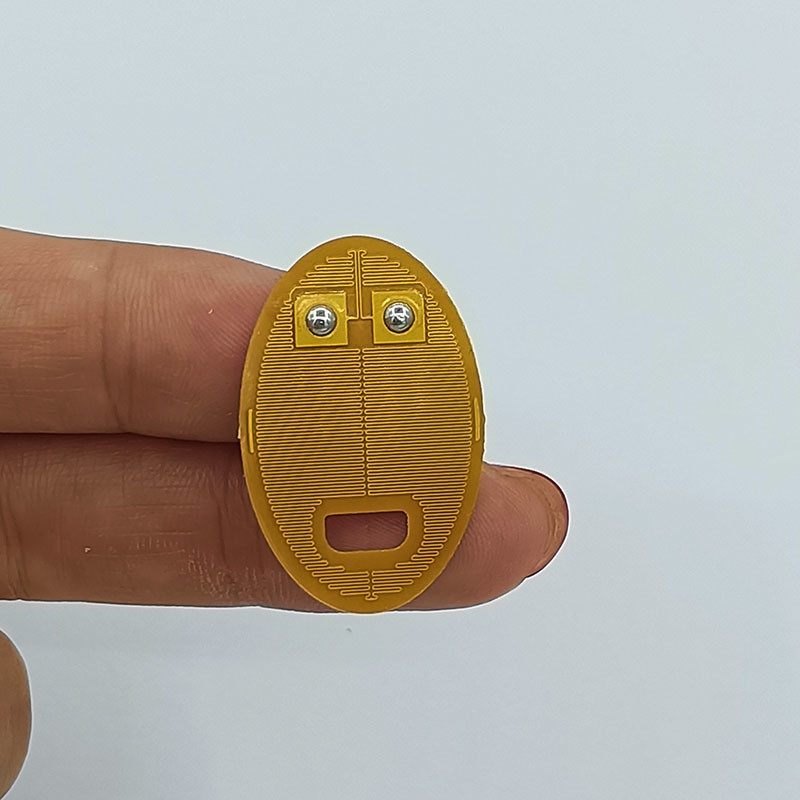

Polyimide Heater With NTC Temperature-Controlled Heating Plate
The polyimide film PI electrothermal film is a polyimide film as an outer insulator; the metal foil and the metal wire are internal conductive heating bodies, which are formed by heat sealing at high temperature and high pressure. Polyimide film electrothermal film has excellent dielectric strength; excellent electric strength; excellent heat transfer efficiency; excellent resistance stability. This makes it widely applicable to the field of heating and is capable of achieving relatively high temperature control accuracy.
1. “professional OEM manufacturer”has more than 50 independent
|
|
Custom parameters
|
Illustrate
|
|
1
|
Size
(l*w*h):
|
Length/width/height or circular diameter, or direct drawings or samples.
|
|
2
|
Thickness
|
0.1mm~1mm.(There are requirements for thickness or hardness can + reinforcement plate)
|
|
3
|
Apply
|
The products of the application, on what equipment, what materials are heated.
|
|
4
|
Cable
|
Whether a lead is required, the length/diameter/end of the lead is required.
|
|
5
|
Use the ambient temperature
|
What is the ambient temperature of the product application.
|
|
6
|
Product usage temperature
|
How much °C the product needs to be heated.
|
|
7
|
Whether a temperature control device is required
|
Thermostat/ thermostat/ temperature sensor, etc., if necessary, provide relevant parameters.
|
|
8
|
Voltage:
|
1.5V~500V
|
|
9
|
Product resistance power parameters
|
Use voltage, resistance, power.
|
|
10
|
Inrush current
|
The maximum allowable load of inrush current is greater.
|
|
11
|
Whether the back strap is required
|
Please describe the material to which the product is pasted.
|
|
12
|
Sample requirement quantity
|
Proofing the quantity of finished products.
|
