Home /Products/Custom Polyimide Heaters/9*37mm Polyimide Ultra-thin Flexible Bendable Electric Film Heater

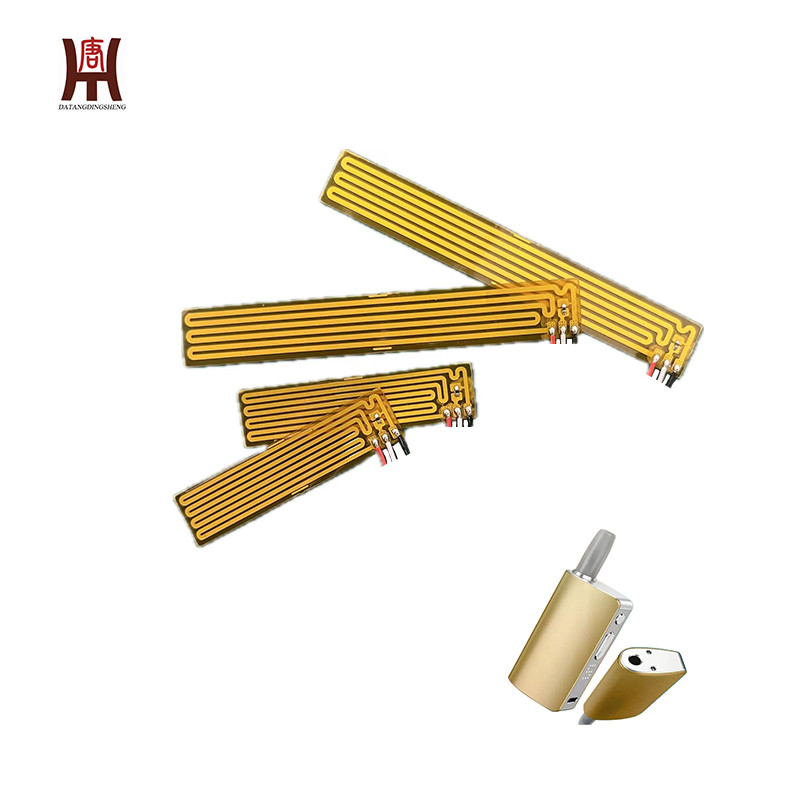

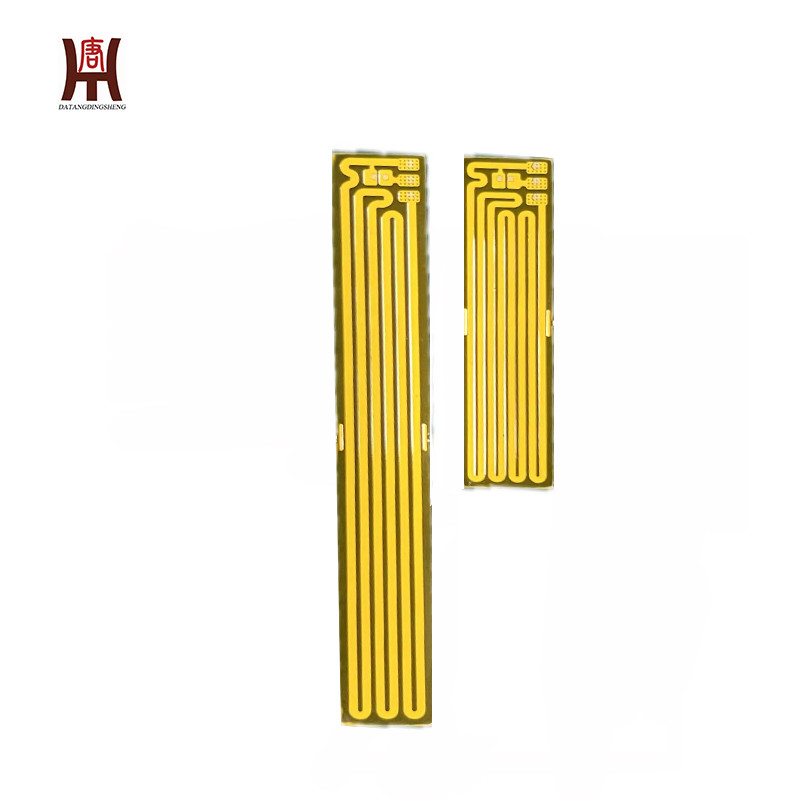

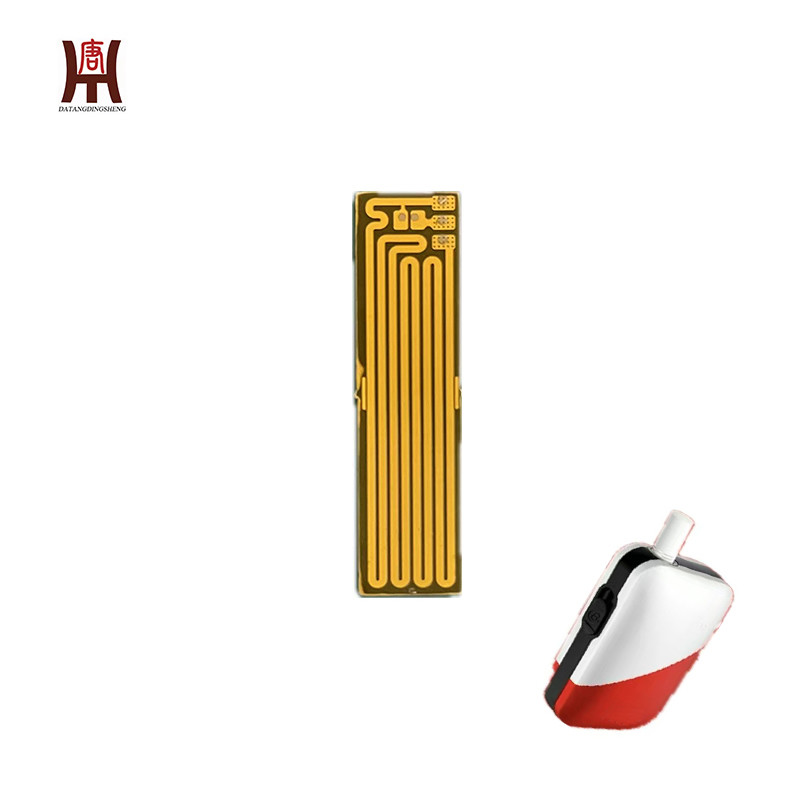

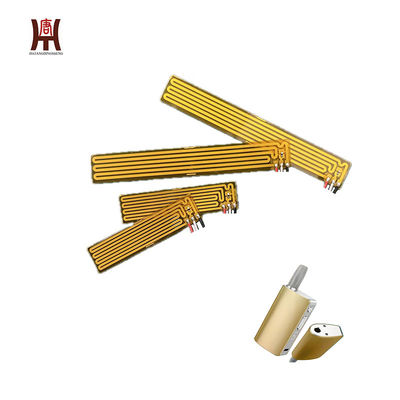

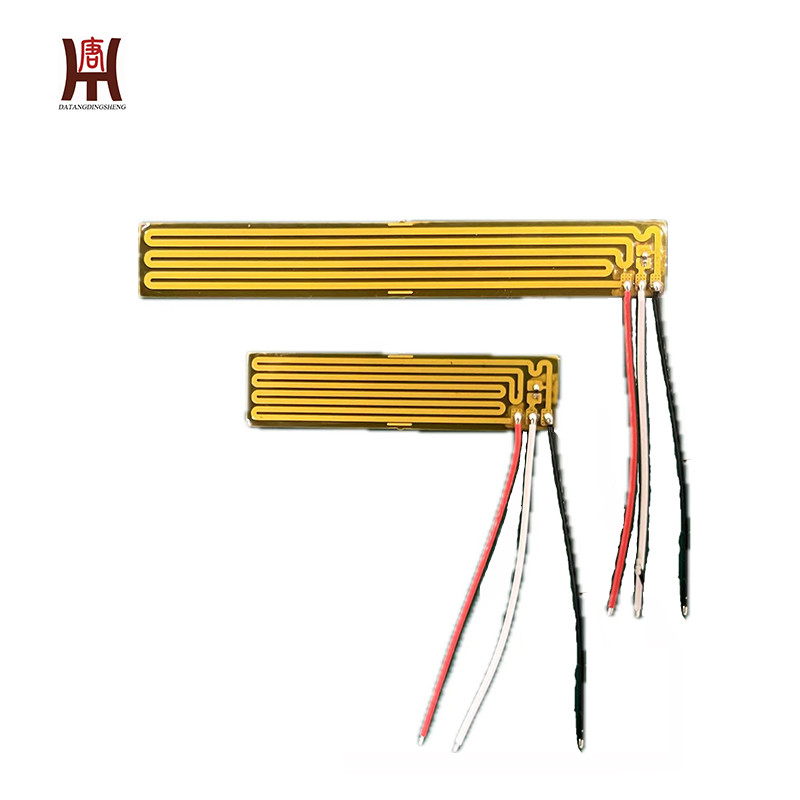

9*37mm Polyimide Ultra-thin Flexible Bendable Electric Film Heater

100PCS
MOQ
Accounting according to the design drawings
Price
9*37mm Polyimide Ultra-thin Flexible Bendable Electric Film Heater
Features Gallery Product Description Request A Quote
Features
Specifications
Key Selling Points: Accurate Temperature Control
Warranty: 3 Years
Heating Element: Copper
Size: Customized
Thickness: 0.1mm-0.5mm
Certifications: UL, CE, RoHS
Material: Polyimide
Power Source: Electric
Highlight:

9x37mm polyimide film heater

,

ultra-thin flexible electric heater

,

bendable polyimide film heater
Basic Infomation
Place of Origin: China
Certification: CE/ISO/FCC
Model Number: 9*37mm Pi heater
Payment & Shipping Terms
Packaging Details: Customized outer box according to size
Delivery Time: 10 days
Supply Ability: It can produce 100,000 pieces per day
Product Description

Product Description:

9*37mm Polyimide Ultra-thin Flexible Bendable Electric Film Heater:

Pi heaters (also known as flex heater) have the same function as silicone mat heaters except they are much thinner (under 0.3mm) and more flexible. These custom-made heaters can be built with similar watt densities and can operate at similar temperatures as silicone heaters.
They are constructed using thin polyimide sheets as insulation with the heating element laminated inside. Advanced circuit imaging and printing gives builders the flexibility to distribute wattage and create many different heat patterns within the same space. It is a high-temperature flexible heating element with excellent dielectric properties capable of operating environments between -40 degree celsius to 300 degree Celsius.
  9*37mm Polyimide Ultra-thin Flexible Bendable Electric Film Heater 0

Technical Parameters:


Attribute Value
Warranty 3 Years
Resistance Tolerance +/-5%
Temperature Sensor Thermocouple Or RTD
Lead Wire As Requested
Dielectric Strength 220V AC For 1 Minute
Type Flexible Heater
Condition New
Thickness 0.1mm-0.5mm
Size Customized
Material Polyimide


Applications:

1. “professional OEM manufacturer”has more than 50 independent technology patents and trademarks.
2. Carefully selected materials,kneading and pressure resistance.
3. Fast heating, lock the temperature.
4. Even heating, good maneuverability, accurate temperature control.
5. Thermal conductivity increased by 20%, energy saving by 20%, increased battery life.
6. It has a wide range of applications.


Kapton® Heaters Feature:

They boost excellent physical and electrical properties – results in thermal stability over a wide temperature range.

Transparent polyimide material – that allows inspection of internal details. Opaque version also available.

Resistance of radiation and fungus – can be used in a wide range of applications.

Rugged, reliable, accurate, and moisture/chemical-resistant

They can be easily bonded or adhered to many surfaces or other system parts.



Packing and Shipping:


Packaging and Shipping for Custom Polyimide Heaters

Here is our standard packaging and shipping process for custom polyimide heaters:

  • Step 1: Each heater is individually wrapped in a protective layer to prevent scratches and other surface damages.
  • Step 2: The heaters are then placed in a sturdy cardboard box to provide additional protection.
  • Step 3: The box is filled with cushioning material, such as bubble wrap or foam, to prevent any movement during transit.
  • Step 4: The box is sealed and labeled with the product name, quantity, and any special handling instructions.
  • Step 5: The packaged heaters are then loaded onto a secure shipping container.




FAQ:

1. who are we?
We are based in Guangdong, China, start from 2014,sell to Eastern Asia(40.00%),North America(25.00%),South America(15.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
The factory area is large, the production capacity is guaranteed, and the industry experience is many years;It has a number of experienced professionals, equipped with complete sets of excellent equipment;
Cooperate with customers pre-sale, sale, after-sales service.

3. Whether can order online directly?
A: You should contact with us providing dimension, CAD drawing, voltage and power, material, thickness and whether you need gum or wire.

4. what services can we provide?
Accepted Delivery Terms:
A. For samples: 8~12 days after payment
B. For large qty: 10~15 days after payment
C. Door to door service,using FedEx;
